Product Spec Sheet :

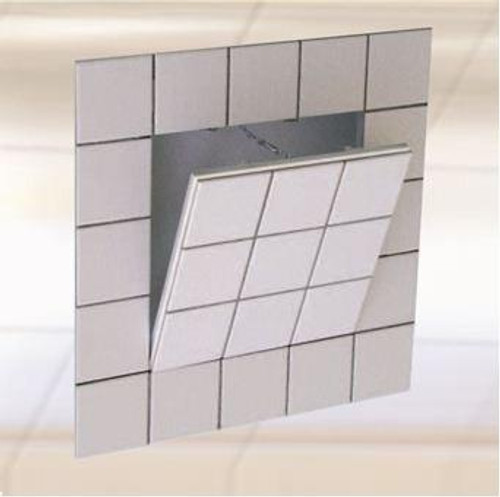

24" x 24" Drywall Inlay Access Panel for Wall Tiling
F3 - Aluminum frame, with drywall inlay, for drywall partitions
The access panel consists of a welded aluminum frame and is available with or without 1/2" (12.7 mm) or 5/8" (15.9 mm) inlayed drywall and two latches (comes standard with inlay and touch latches).
Both an outer and an inner frame assembly consists of high grade aluminum which is bonded with a special welding process. For sizes 12" x 12" (305 mm x 305 mm) and up the access panels are equipped with a safety system to prevent accidental opening. This safety system must be reattached if the hatch is removed.
The reveal of 1/16 of an inch (1.59 mm) is visible between the outer frame and door hatch. The concealed snap locks open the access panel when pressure is applied to the spring loaded latch side.
This access panel is designed for tiling applications.
Special advantages
- Superior engineering & innovative design
- Fast delivery
- Quick and easy installation
- Solid aluminum frame
- For Wall Installation Only
- Available in moisture resistant, mildew resistant and cement board
Customized solutions
Customized sizes can be produced in every dimension upon request. (Request a Quote)
